超声波探伤仪探头
扫码
扫码

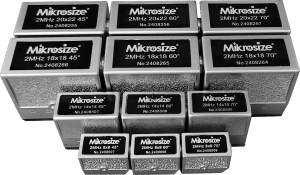

1.Angle Probe 2MHz

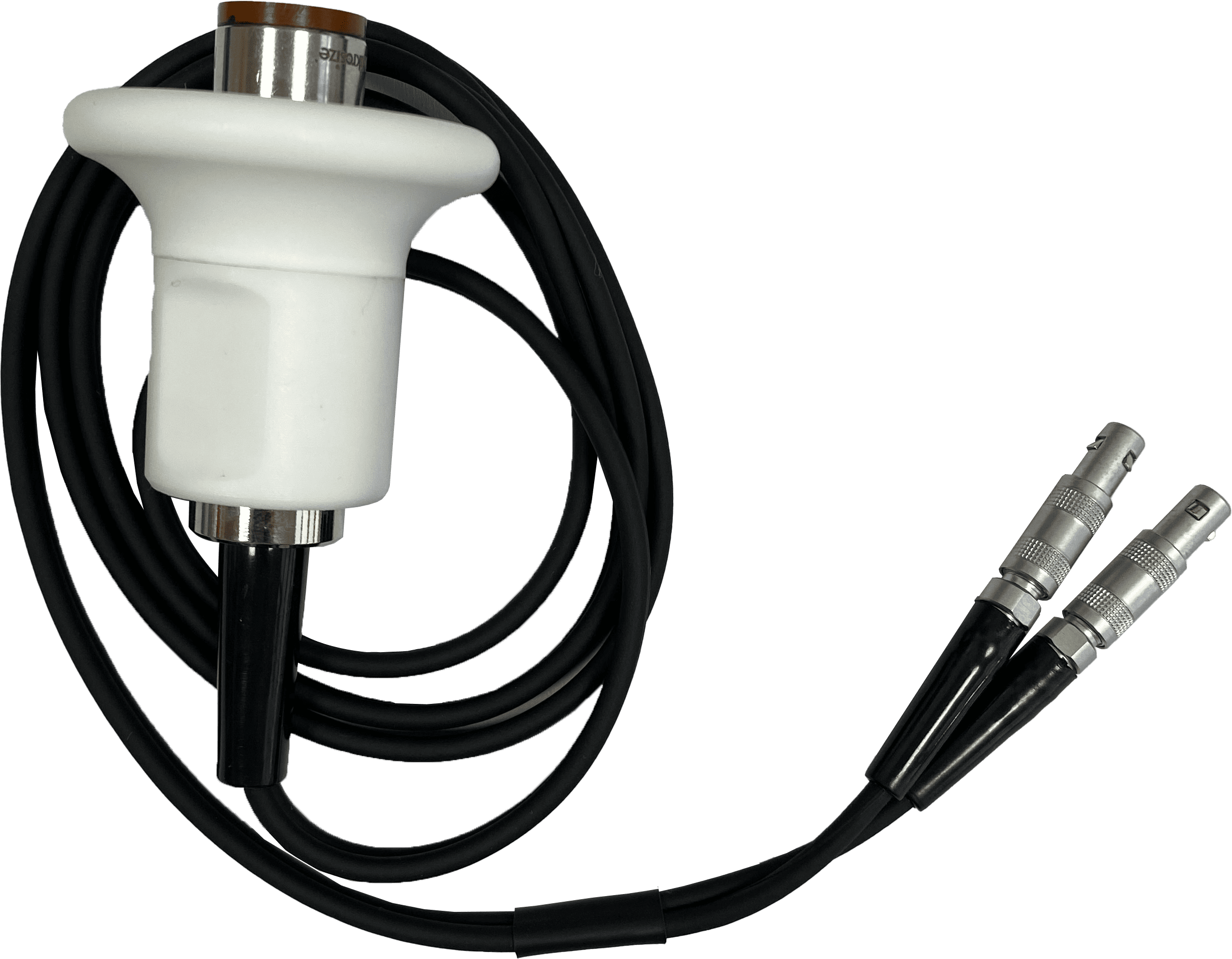

High Temperature Thickness Probe GT 12

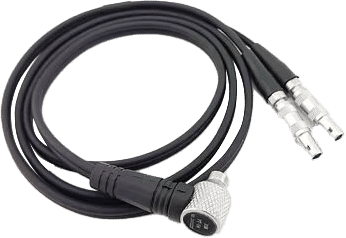

Thickness Gauge Probe 10MHz Φ4

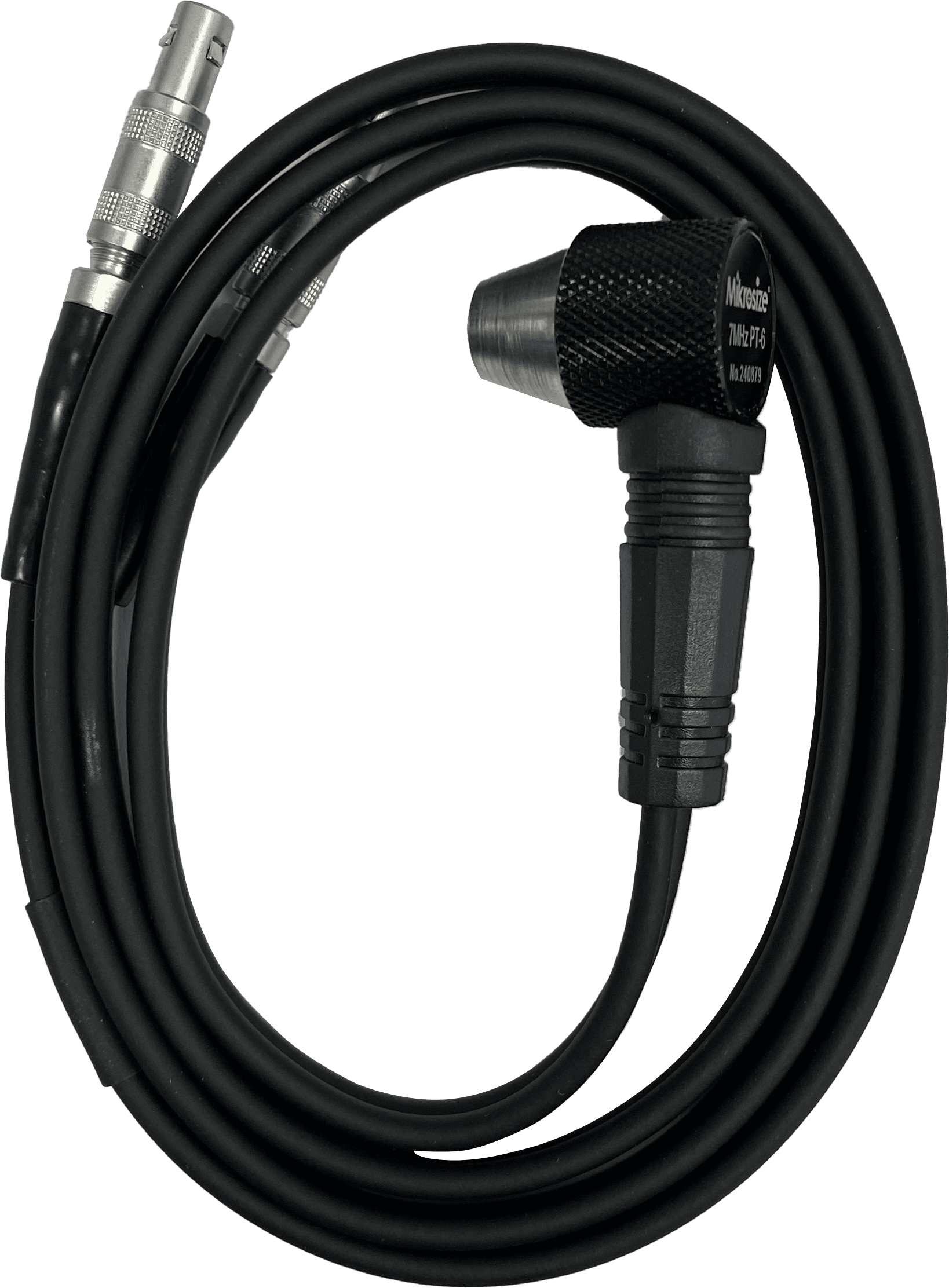

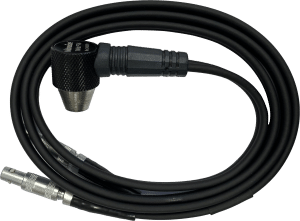

Thickness Gauge Probe 7MHz Φ6

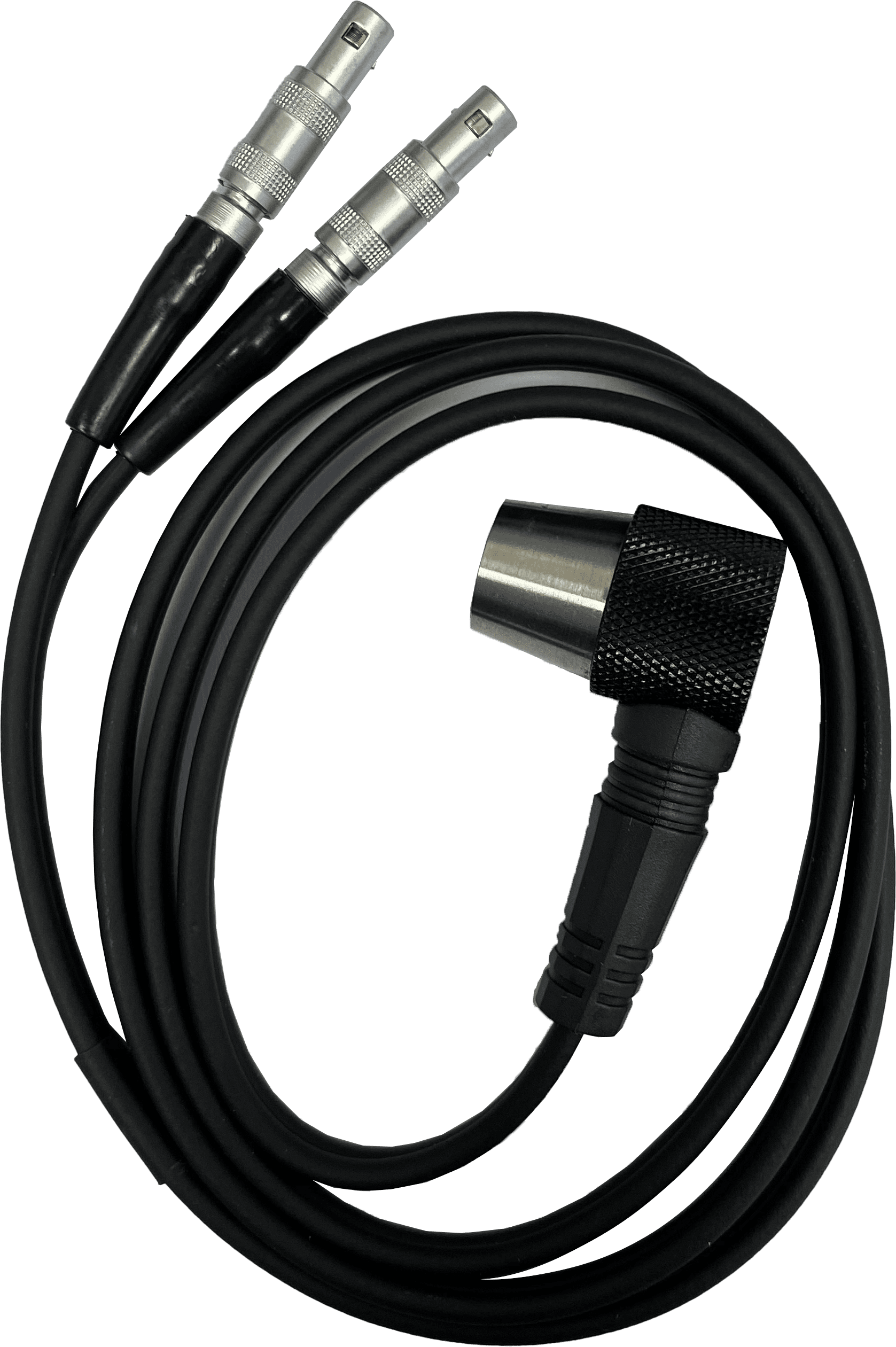

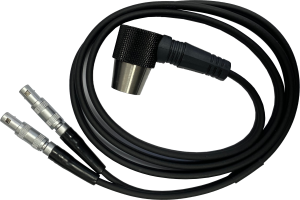

Thickness Gauge Probe 5MHz Φ10

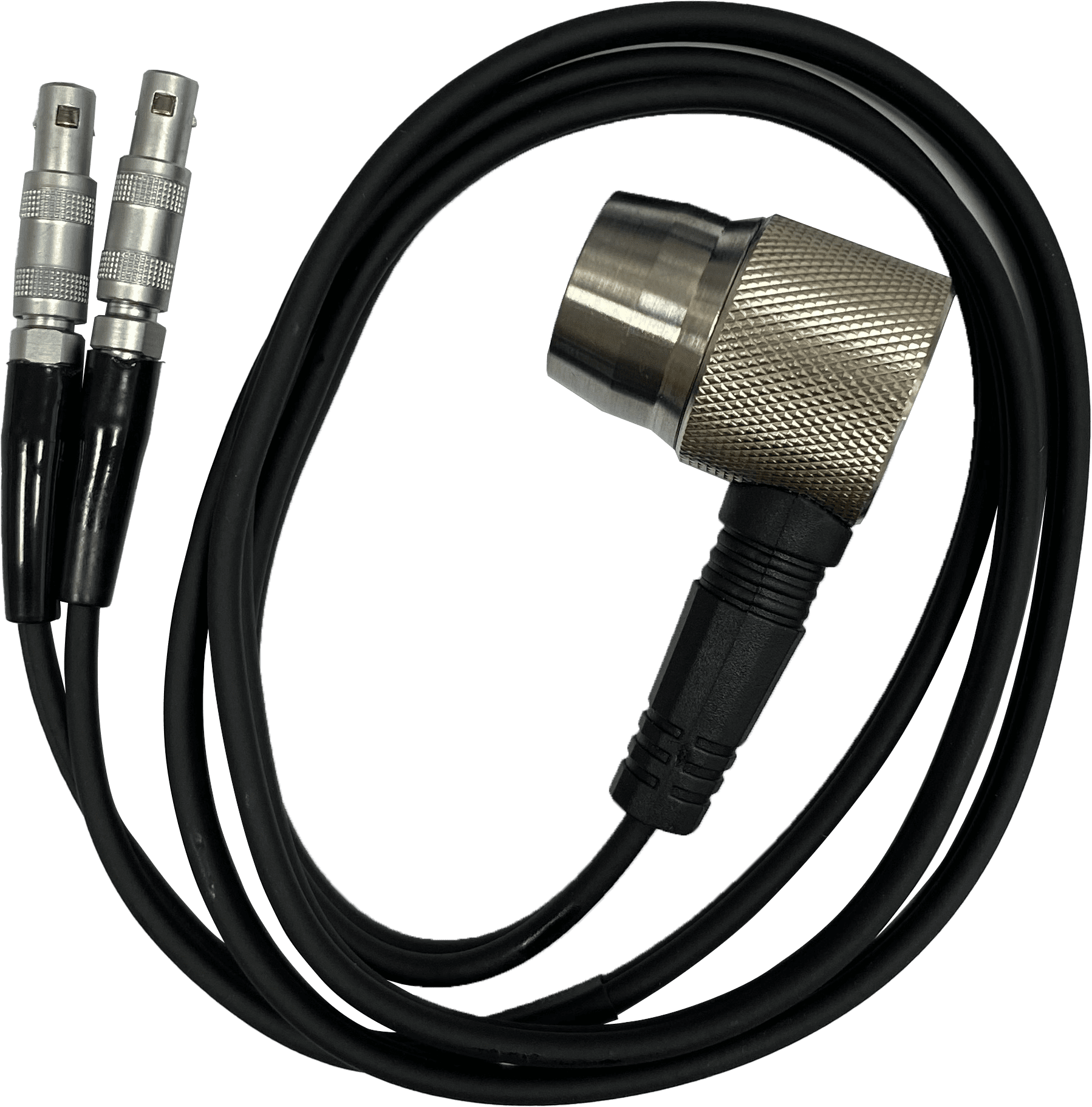

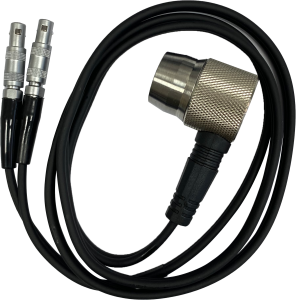

Thickness Gauge Probe 2MHz ZT 12

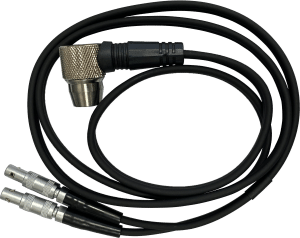

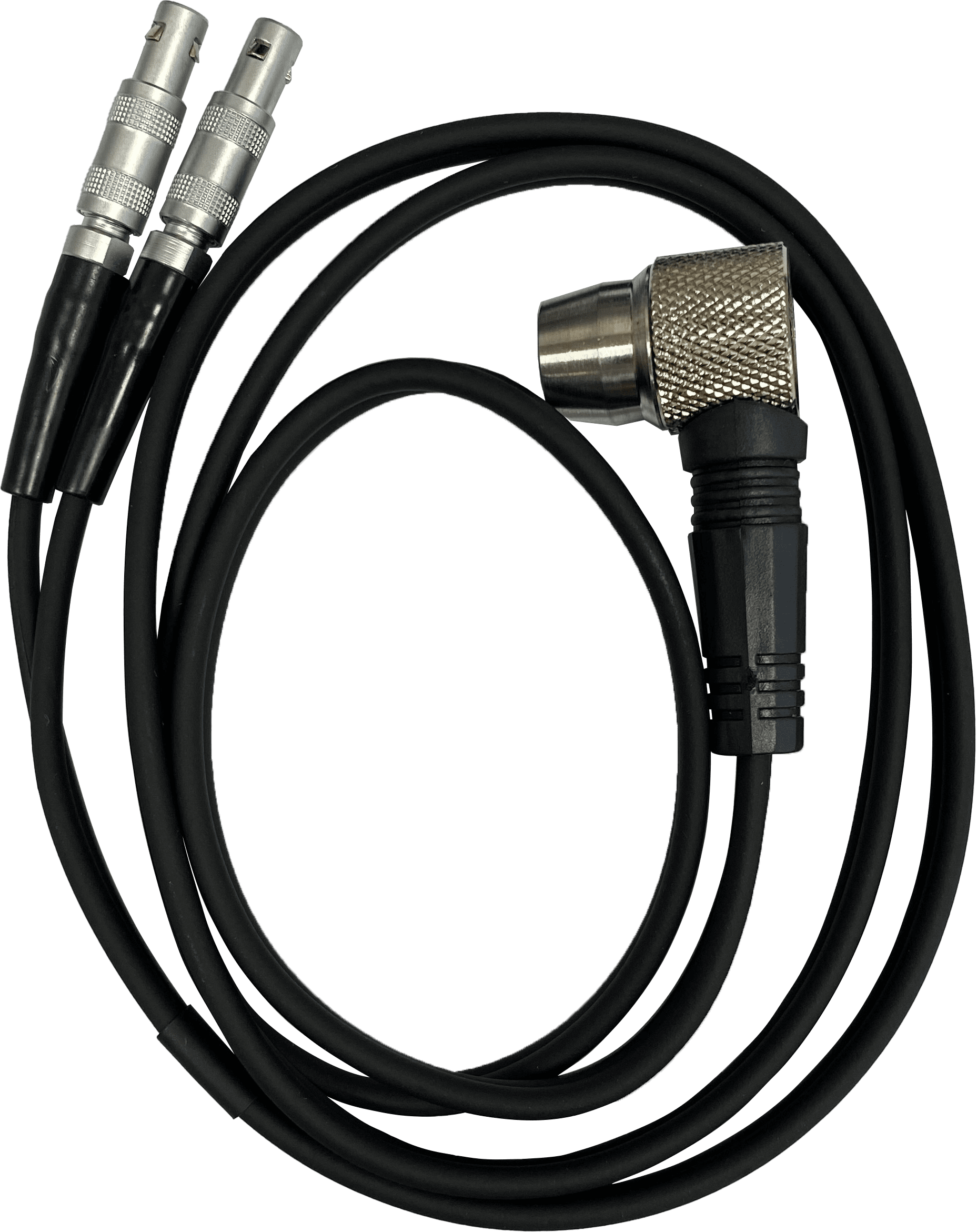

Thickness Gauge Probe 5MHz Φ8 1

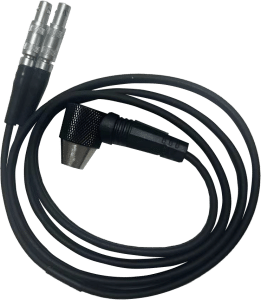

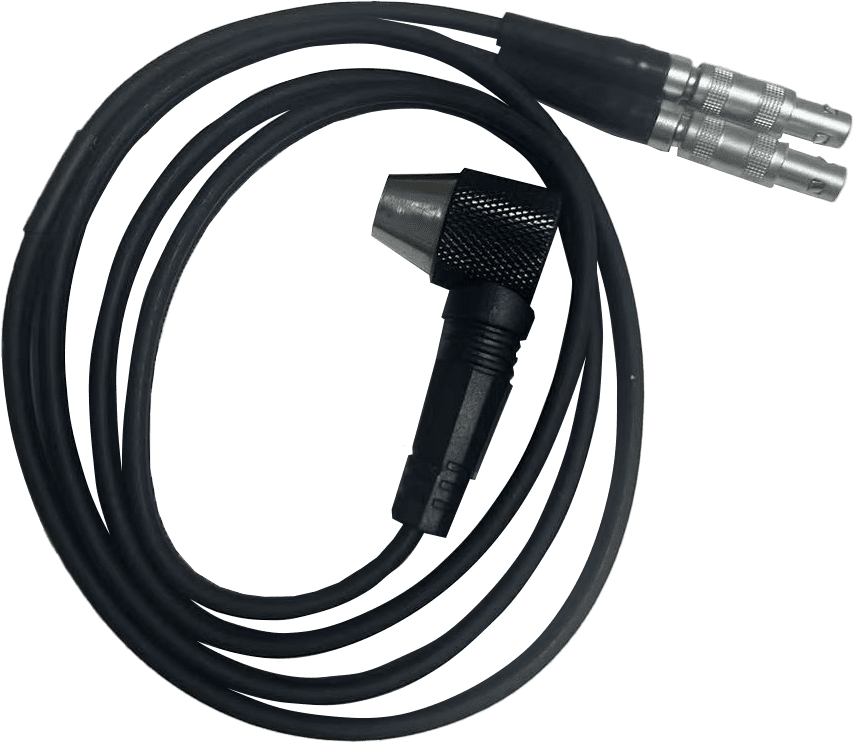

Thickness Gauge Probe 5MHz Φ6

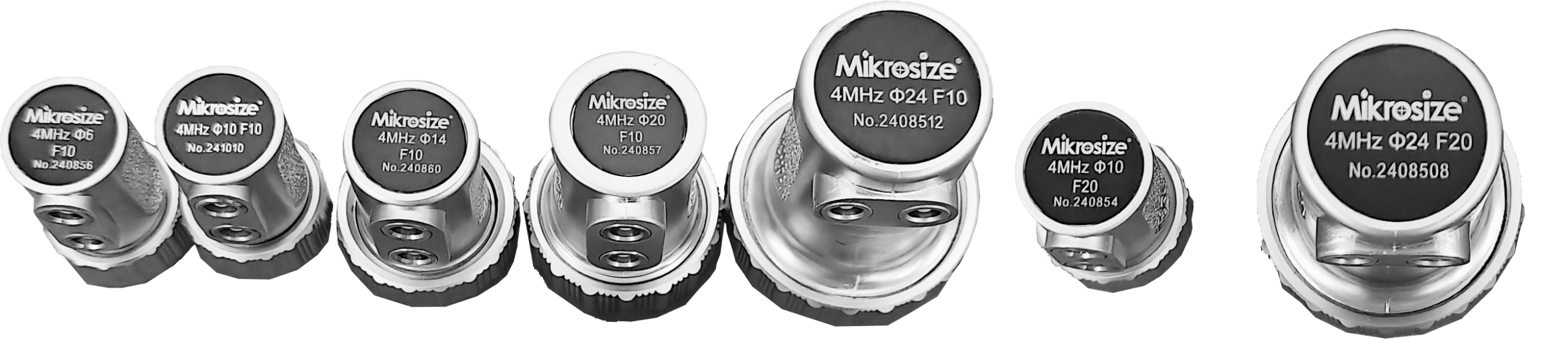

8.Double crystal Normal Probe 4MHz scaled

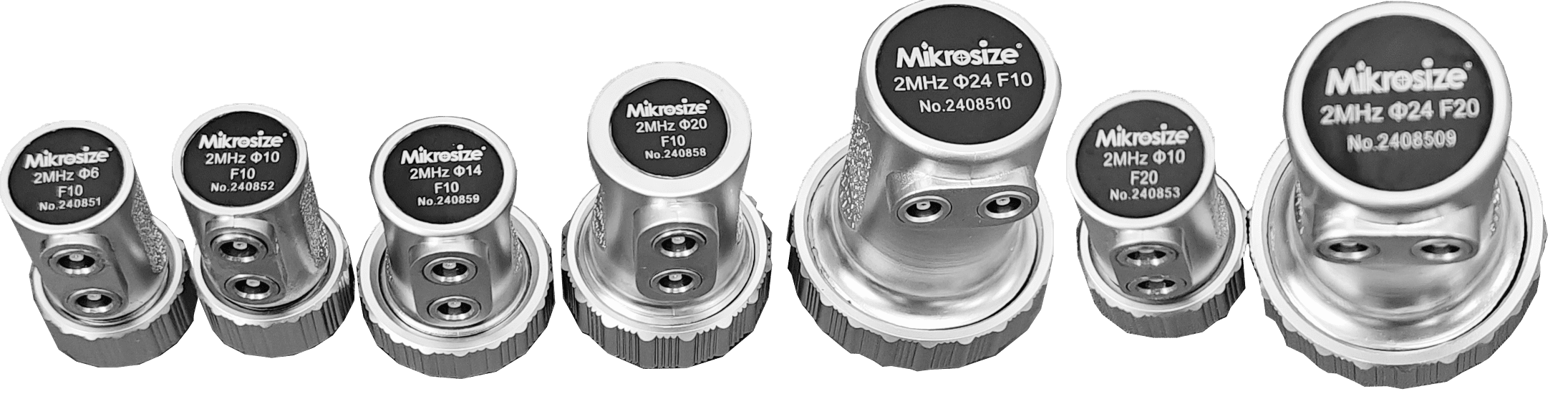

7.Double crystal Normal Probe 2MHz F10、F20

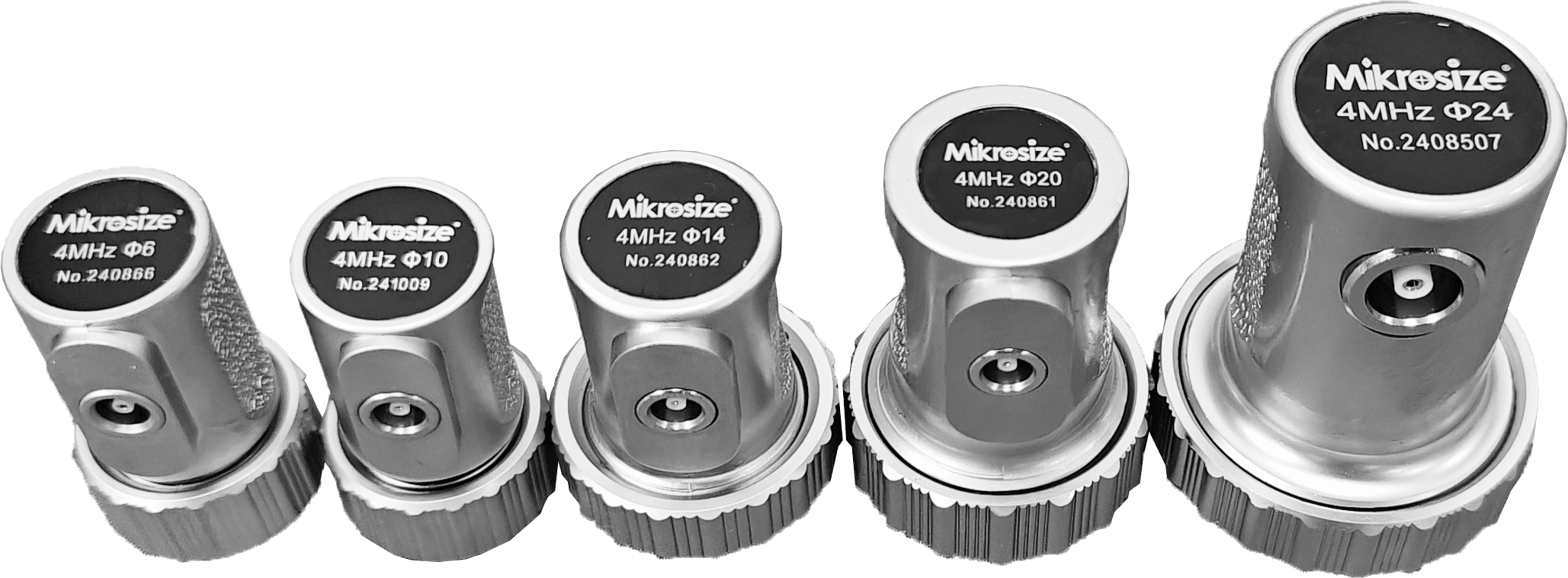

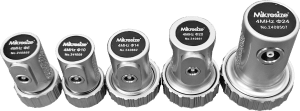

6.Normal Straight Probe 4MHz

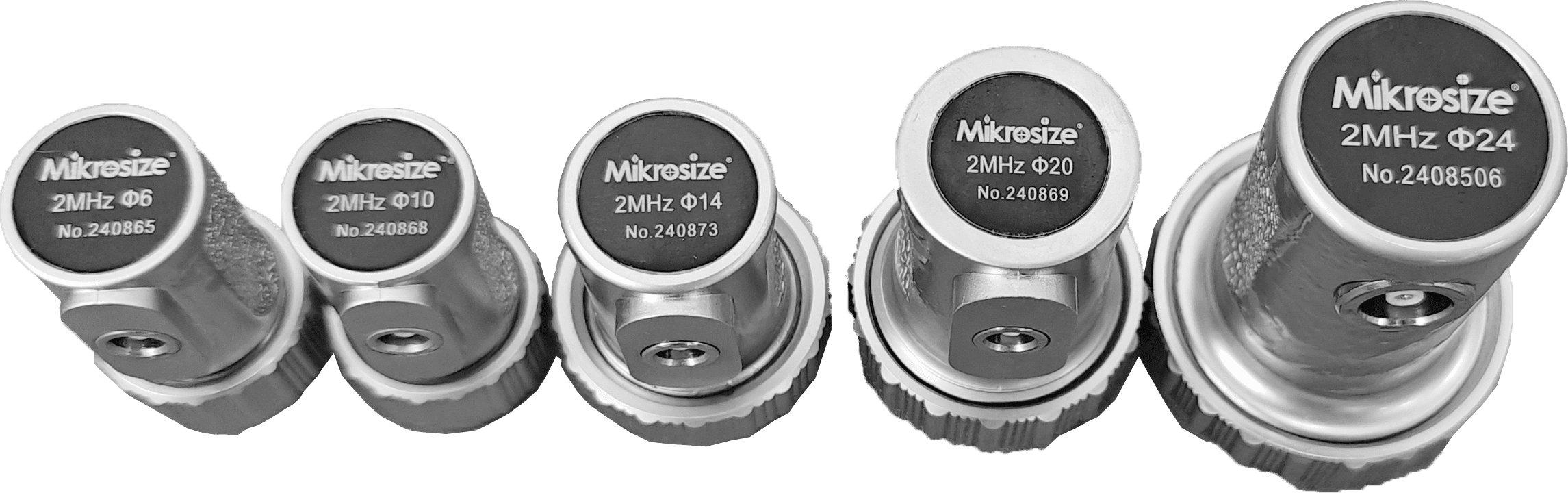

5.Normal Straight Probe 2MHz

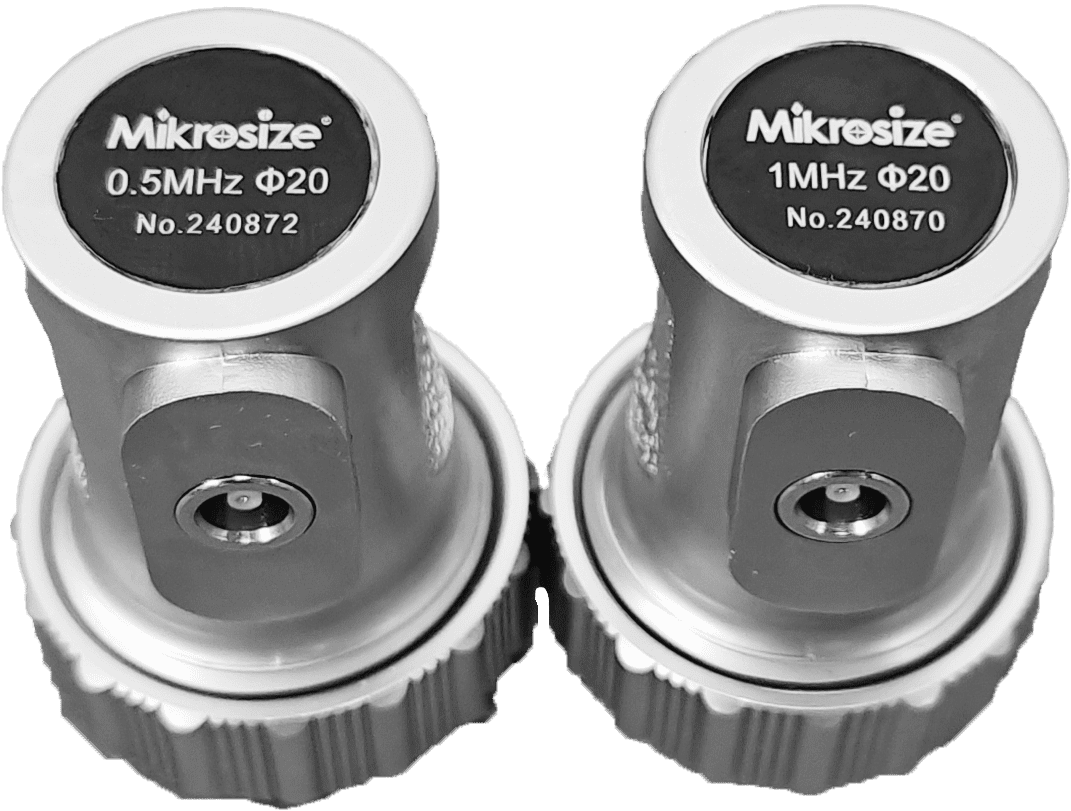

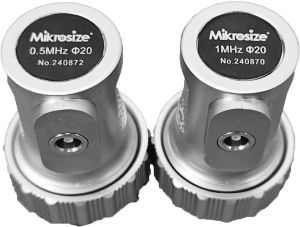

4.Normal Straight Probe Φ20 0.5MHz、1MHz

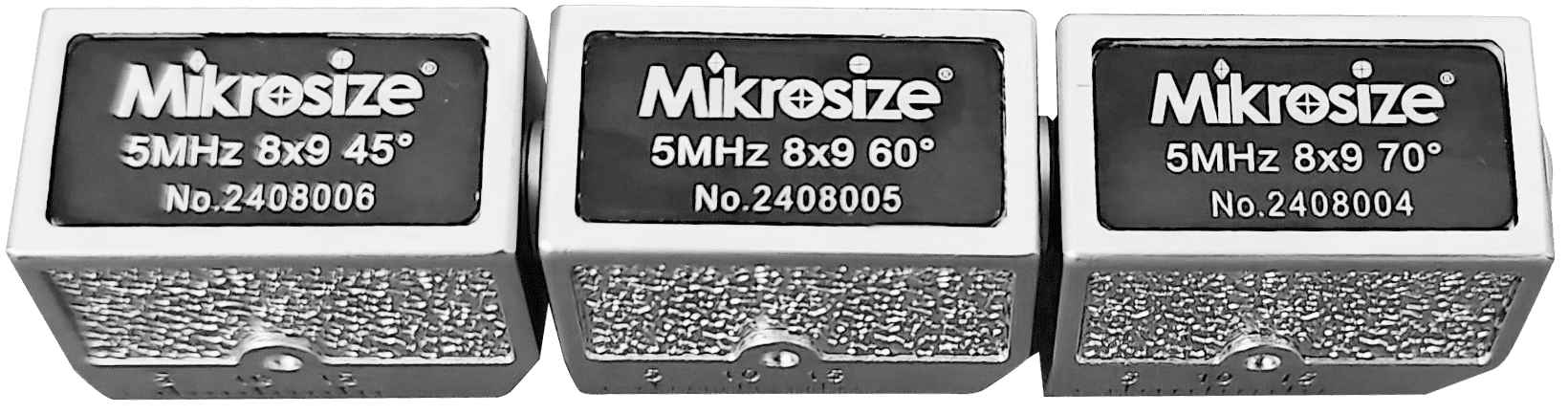

3.Angle Probe 5MHz

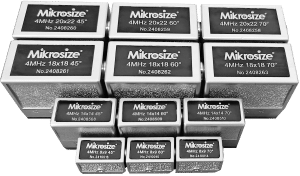

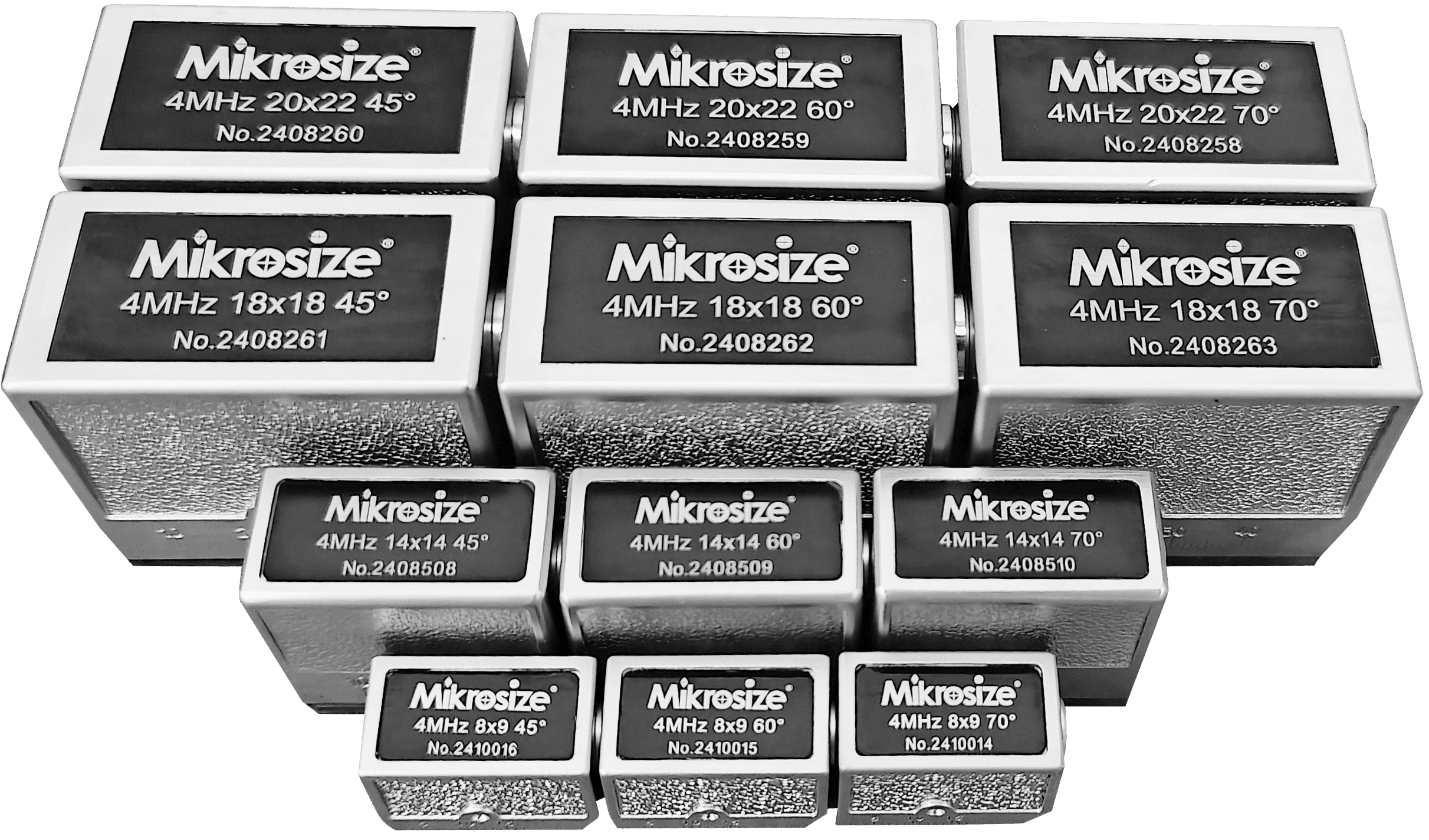

2.Angle Probe 4MHz
技术规格
角度探头
| 频率 | 2MHz | |||||||||||
| 晶片尺寸（毫米） | 8x9 | 14x14 | 18x18 | 20x22 | ||||||||
| 角度 | 45° | 60° | 70° | 45° | 60° | 70° | 45° | 60° | 70° | 45° | 60° | 70° |
| 波频误差 | ≤ 10% | |||||||||||
| 剩余灵敏度（分贝） | ≥ 70 | ≥ 68 | ≥ 64 | ≥ 70 | ≥ 66 | ≥ 62 | ≥ 72 | ≥ 70 | ≥ 64 | ≥ 72 | ≥ 68 | ≥ 66 |
| 始波宽度（毫米） | ≤ 22 | ≤ 22 | ≤ 21 | ≤ 22 | ≤ 22 | ≤ 21 | ≤ 22 | ≤ 22 | ≤ 22 | ≤ 22 | ≤ 22 | ≤ 22 |
| 分辨率（分贝） | ≥ 34 | ≥ 32 | ≥ 32 | ≥ 32 | ≥ 32 | 54308%">≥30≥ 30 | ≥ 34 | ≥ 32 | ≥ 32 | ≥ 34 | ≥ 32 | ≥ 28 |
| 波束偏转 | ≤ ±1° | |||||||||||
| 前沿距离(mm) | ≤ 11.5 | ≤ 12.5 | ≤ 21 | ≤ 22 | ≤ 18.5 | ≤ 21 | ≤ 20.5 | ≤ 19.5 | ||||
| 实测K值 | ±0.5° | |||||||||||
| 标准 | EN12668-2 | |||||||||||
角度探头
| 频率 | 4MHz | |||||||||||
| 晶片尺寸(mm) | 8x9 | 14x14 | 18x18 | 20x22 | ||||||||
| 角度 | 45° | 60° | 70° | 45° | 60° | 70° | 45° | 60° | 70° | 45° | 60° | 70° |
| 波频误差 | ≤ 10% | |||||||||||
| 余量灵敏度(dB) | ≥ 64 | ≥ 66 | ≥ 64 | ≥ 67 | ≥ 66 | ≥ 64 | ≥ 64 | ≥ 64 | ≥ 60 | ≥ 64 | ≥ 64 | ≥ 60 |
| 初始波宽(mm) | ≤ 13 | ≤ 13 | ≤ 13 | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 12 | ≤ 14 | ≤ 14 | ≤ 12 | ≤ 14 | ≤ 14 |
| 分辨率(dB) | ≥ 32 | ≥ 35 | ≥ 32 | ≥ 34 | ≥32 | ≥ 32 | ≥ 30 | ≥ 30 | ≥ 30 | ≥ 30 | ≥ 30 | ≥ 30 |
| 波束偏转 | ≤ ±1° | |||||||||||
| 前沿距离(mm) | ≤ 11.5 | ≤ 13 | ≤ 12 | ≤ 12 | ≤ 25 | ≤ 23 | ≤ 23 | ≤ 25 | ≤ 23 | ≤ 23 | ||
| 实测K值 | ±0.5° | |||||||||||
| 标准 | EN12668-2 | |||||||||||
角度探头
| 频率 | 5MHz | ||
| 晶片尺寸（毫米） | 8x9 | ||
| 角度 | 45° | 60° | 70° |
| 波频误差 | ≤ 10% | ||
| 剩余灵敏度（分贝） | ≥ 68 | ≥ 66 | ≥ 62 |
| 初始波宽（毫米） | ≤ 12 | ≤ 12 | ≤ 12 |
| 分辨率（分贝） | ≥ 32 | ≥ 32 | ≥ 32 |
| 波束偏转 | ≤ ±1° | ||
| 前沿距离（毫米） | ≤ 11.5 | ||
| 实测K值 | ±0.5° | ||
| 标准 | EN12668-2 | ||
普通直探头
| 频率 | 0.5MHz | 1MHz | |
| 晶片尺寸 (mm) | Φ20 | ||
| 波频误差 | ≤ 10% | ||
| 余量灵敏度(dB) | ≥ 32 | ≥ 38 | |
| 始波宽度(mm) | ≤ 30 | ≤ 26 | |
| 分辨率(dB) | ≥ 28 | ≥ 22 | |
| 声束偏斜 | ≤ ±1° | ||
| 标准 | EN12668-2 | ||
普通直探头
| 频率 | 2MHz | ||||
| 晶片尺寸 (mm) | Φ6 | Φ10 | Φ14 | Φ20 | Φ24 |
| 波频误差 | ≤ 10% | ||||
| 余量灵敏度(dB) | ≥ 18 | ≥ 34 | ≥ 44 | ≥ 54 | ≥ 54 | ≤ 21 | ≤ 21 | ≤ 21 | ≤ 21 | ≤ 21 |
| 分辨率(dB) | ≥ 18 | ≥ 18 | ≥ 22 | ≥ 26 | ≥ 26 |
| 波束偏转 | ≤ ±1° | ||||
| 标准 | EN12668-2 | ||||
常规直探头
| 频率 | 4MHz | ||||
| 晶片尺寸(mm) | Φ6 | Φ10 | Φ14 | Φ20 | Φ24 |
| 波频误差 | ≤ 10% | ||||
| 剩余灵敏度(dB) | ≥ 26 | ≥ 42 | ≥ 50 | ≥ 54 | ≥ 56 |
| 初始波宽(mm) | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 14 |
|
≥ 26 |
≥ 26 | ≥ 28 | ≥ 26 | ≥ 30 | |
| 声束偏斜 | ≤ ±1° | ||||
| 标准 | EN12668-2 | ||||
双晶直探头
| 频率 | 2MHz | ||||||
| 晶片尺寸 (mm) | Φ6 | Φ10 | Φ14 | Φ20 | Φ24 | Φ10 | Φ24 |
| 焦距 | 10mm | 20mm | |||||
| 波频误差 | ≤ 10% | ||||||
| 余量灵敏度(dB) | ≥ 42 | ≥ 60 | ≥ 60 | ≥ 64 | ≥ 66 | ≥ 54 | ≥ 64 |
| 始波宽度(mm) | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 14 | ≤ 14 |
| 分辨率(dB) | ≥ 26 | ≥ 32 | ≥ 28 | ≥ 32 | ≥ 30 | ≥ 32 | ≥ 32 |
| 声束偏斜 | ≤ ±1° | ||||||
| 标准 | EN12668-2 | ||||||
双晶直探头
| 频率 | 4MHz | ||||||
| 晶片尺寸(mm) | Φ6 | Φ10 | Φ14 | Φ20 | Φ24 | Φ10 | Φ24 |
| 聚焦距离 | 10mm | 20mm | |||||
| 波频误差 | ≤ 10% | ||||||
| 余量灵敏度(dB) | ≥ 40 | ≥ 58 | ≥ 56 | ≥ 60 | ≥ 60 | ≥ 56 | ≥ 60 |
| 始波宽度(mm) | ≤ 8 | ≤ 8 | ≤ 8 | ≤ 8 | ≤ 8 | ≤ 8 | ≤ 8 |
| 分辨率(dB) | ≥ 32 | ≥ 32 | ≥ 32 | ≥ 34 | ≥ 32 | ≥ 32 | ≥ 34 |
| 波束偏转 | ≤ ±1° | ||||||
| 标准 | EN12668-2 | ||||||
超声波探伤探头
 |
 |
 |
 |
| TP0212200 | TP0506060 | TP0508225 | TP0510250 |
 |
 |
 |
|
| TP0706060 | TP1004030 | HTP0510250 HTP0510350 HTP0510500 |
| 代码 | 厚度测量范围 | 晶片直径 | 频率 | 工作温度 |
| TP0212200 | 1-200mm | Φ12mm | 2MHz | -10℃~60℃ |
| TP0506060 | 1-60mm | Φ6mm | 5MHz | -10℃~60℃ |
| TP0508225 | 1-225mm | Φ10mm | 5MHz | -10℃~60℃ |
| TP0510250 | 1-250mm | Φ10mm | 5MHz | -10℃~60℃ |
| TP0706060 | 0.8-60mm | Φ6mm | 7MHz | -10℃~60℃ |
| TP1004030 | 0.75-30mm | Φ4mm | 10MHz | -10℃~60℃ |
| HTP0510250 | 2-220mm | Φ10mm | 5MHz | -10℃~250℃ |
| HTP0510350 | 2-220mm | Φ10mm | 5MHz | -10℃~350℃ |
| HTP0510500 | 2-220mm | Φ10mm | 5MHz | -10℃~500℃ |
